Fascinating Facts About Cartographers Who Invented the First Map Projections

The Ancient Foundations: Ptolemy and the Earliest Projections

Long before satellites and GPS, ancient thinkers grappled with a fundamental cartographic problem: how to portray the spherical Earth on a flat surface. The first systematic attempts date back to the 2nd century AD, when the Greco-Egyptian geographer and astronomer Claudius Ptolemy codified the science of mapmaking in his seminal work Geographia. Ptolemy recognized that projecting a globe onto a plane inevitably introduced distortions. His solution was to create two families of projections: the conic projection (projecting onto a cone placed over the globe) and the pseudoconic projection (also known as the "spindle-shaped" projection, where meridians were curved rather than straight). While neither was mathematically perfect, these early models established the conceptual framework for all later projection systems.

Ptolemy’s influence was immense. His Geographia was lost to Europe for centuries but preserved and refined by Arabic scholars such as al-Idrisi, who in 1154 produced the Tabula Rogeriana—a world map using a deliberately distorted projection to center the Islamic world. When Ptolemy’s work was rediscovered in Europe in the early 15th century, it triggered a revolution in cartography. Mapmakers in the Renaissance began experimenting with Ptolemy’s projections, adding new geographic data from the Age of Exploration. Yet for all Ptolemy’s ingenuity, his projections were ill-suited for the open ocean, where sailors needed straight lines that represented constant compass bearings—a problem that would not be solved for another 1,400 years. Learn more about Ptolemy’s map projections.

By the 16th century, European explorers were crossing vast oceans, and navigation had become a life-and-death matter. A degree of longitude in the wrong place could wreck a ship or start a war. The breakthrough came in 1569 when the Flemish cartographer Gerardus Mercator published a world map using a radically new projection. Mercator’s projection was conformal—it preserved local angles and shapes, making it ideal for close-up coastline mapping. But its true genius was the property that every straight line drawn on the map was a rhumb line (a line of constant bearing). Navigators could simply draw a straight line between two points and follow a single compass heading for the entire voyage, ignoring the curvature of the Earth.

The Mercator projection came at a cost: extreme area distortion. Greenland appears as large as Africa, and Antarctica dwarfs all other continents. Despite this flaw, the projection became the standard for nautical charts for centuries. Mercator himself understood the trade-off; he was a mathematician and instrument maker, not a geographer seeking pure accuracy. His projection was a practical tool for sailors, not a representation of true relative sizes. Read more about Mercator and his projection.

Mercator’s projection is still used today in navigation, but it has also been applied far beyond its intended purpose—in classrooms, atlases, and on web maps (where it is known as Web Mercator). The distortion is so severe that it has been criticized for perpetuating a Eurocentric view of the world, since Europe and North America appear much larger relative to equatorial countries. This controversy underscores the crucial lesson that every map projection is a choice with consequences.

Balancing Distortions: The Art of Choosing a Projection

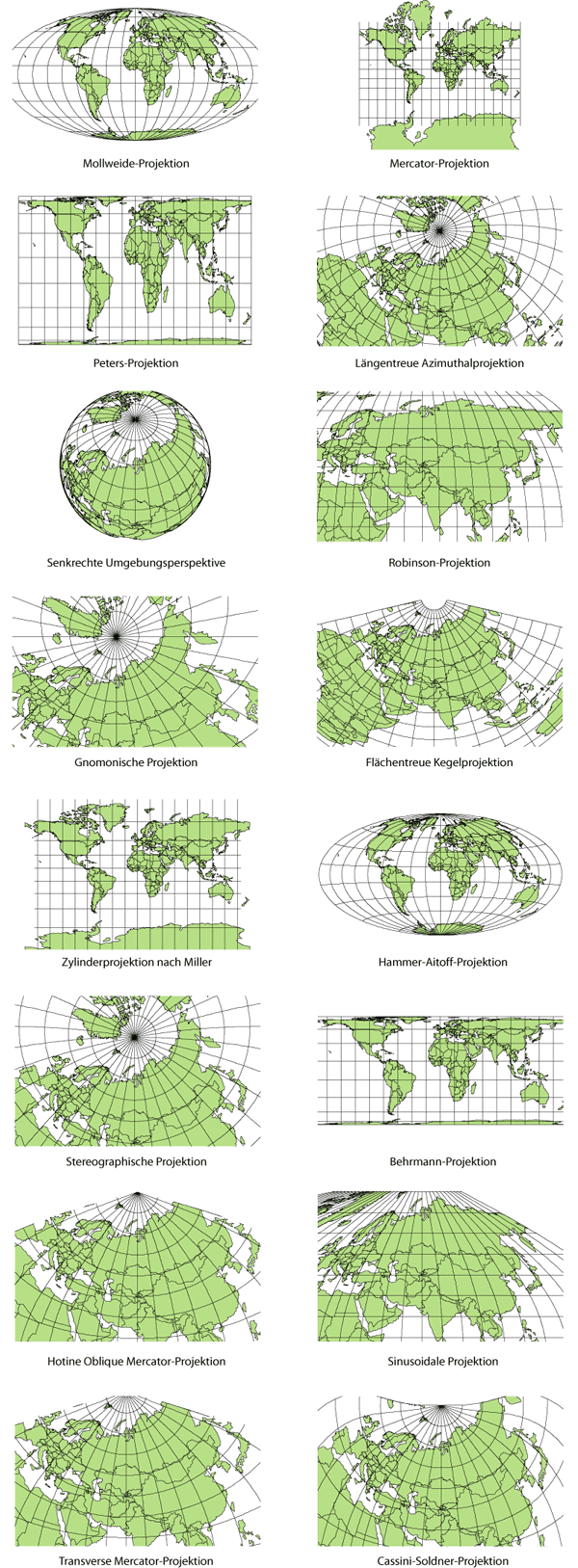

No flat map can perfectly preserve all four geographic properties: shape, area, distance, and direction. Cartographers must choose which distortions to minimize based on the map’s purpose. Over the centuries, they have developed dozens of projection families, each with its own trade-offs. Understanding these families is key to appreciating the ingenuity of the early pioneers.

Conformal Projections (Preserving Shape)

Conformal projections maintain correct local angles, so the shapes of small regions (such as coastlines or borders) appear accurate. The Mercator projection is the most famous example, but others include the Lambert conformal conic (ideal for mid-latitude regions like the United States) and the Transverse Mercator (used for UTM grid systems). Conformal projections are essential for navigation, meteorology, and military mapping, where angular precision matters more than relative area.

Equal-Area Projections (Preserving Area)

Equal-area (or equivalent) projections accurately represent the relative size of landmasses, but they distort shapes and sometimes distances. The first systematic equal-area projection was developed by Johann Heinrich Lambert in 1772—the Lambert azimuthal equal-area projection, which preserves area in a circle of any size. Other notable equal-area projections include:

Albers equal-area conic – commonly used for countries and continents that span east-west (e.g., the contiguous United States).
Mollweide projection – a pseudocylindrical projection that presents the whole world in an ellipse, often used in world atlases for thematic maps.
Goode’s homolosine – an interrupted projection that minimizes distortion by breaking the map into gores (like an orange peel).

These projections are favored in choropleth maps, population density maps, and any visualization where accurate area comparison is critical.

Equidistant and Compromise Projections

Equidistant projections preserve accurate distances from one or two chosen points (usually the center). The azimuthal equidistant projection, for example, shows true distances along every line radiating from the center point—useful for radio range circles or seismic mapping. The equirectangular projection (also called the plate carrée) is one of the simplest equidistant projections and was used in early world maps.

Compromise projections don’t fully preserve any single property but aim to make overall distortion acceptable to the eye. The Robinson projection, developed in 1963, is a classic example—it distorts shapes, areas, and distances slightly everywhere, but the result is visually balanced and was used by the National Geographic Society for decades. The Winkel Tripel, developed in 1921, is another compromise projection that minimizes three kinds of distortion (length, area, and angle) and is currently used by many major atlas publishers.

The choice of projection is not merely technical; it is often ideological. The Gall-Peters projection, an equal-area cylindrical projection, was heavily promoted in the 1970s to counter the Eurocentric bias of the Mercator projection. While it accurately shows area, it severely distorts shapes, making countries appear stretched and unnatural. The debate between shape and area remains unresolved—proof that no single projection can serve all needs.

Lesser-Known Pioneers and Their Contributions

While Ptolemy and Mercator are household names, many other cartographers made fundamental contributions to the mathematics of map projections. These lesser-known pioneers refined the theory and developed projections used worldwide today.

Johann Heinrich Lambert (1728–1777)

Lambert was a Swiss mathematician, physicist, and philosopher who made astonishing contributions to cartography in the 1770s. In a single 1772 treatise, he introduced three entirely new projections: the Lambert conformal conic (now standard for aeronautical charts), the Lambert azimuthal equal-area, and the Lambert cylindrical equal-area (similar to the later Gall-Peters but mathematically superior). Lambert’s work was highly theoretical—he derived formulas from the mathematical properties of surfaces, not from empirical trial-and-error. His projections were decades ahead of their time; they did not gain wide use until the age of aviation in the 20th century. Explore Lambert’s cartographic contributions.

Nicolas Auguste Tissot (1824–1897)

French mathematician Nicolas Auguste Tissot developed a simple but powerful tool for analyzing map projection distortions: the Tissot indicatrix. The indicatrix is a small circle on the globe that, when projected, becomes an ellipse (or remains a circle if no angular distortion occurs). By examining the shape, size, and orientation of these ellipses across a map, cartographers can quantify exactly how much a projection distorts area and angle. Tissot’s work, published in 1881, gave mapmakers a systematic way to compare projections and design better ones. His indicatrix is still taught in every cartography course.

Al-Idrisi and the Medieval Islamic World

During the European Middle Ages, Islamic scholars preserved and expanded Ptolemaic cartography. Muhammad al-Idrisi worked at the court of King Roger II of Sicily, producing the Tabula Rogeriana in 1154. Al-Idrisi’s map was created on a rectangular grid (a form of the equirectangular projection) covering the known world from Europe to China—yet it placed south at the top. While not mathematically innovative compared to later projections, his map represented the most accurate world view before the Age of Exploration. Al-Idrisi’s work demonstrates that cultural perspective and projection choice are intertwined.

Modern Projections and Digital Cartography

The digital age has transformed map projection design and usage. In Geographic Information Systems (GIS), projections are now managed dynamically: a dataset can be stored in a geographic coordinate system (latitude/longitude) and re-projected on the fly for any specific analysis. Two projections dominate modern digital mapping: Universal Transverse Mercator (UTM) and Web Mercator.

UTM is a family of conformal cylindrical projections (2°-wide zones), designed for precise distance and area measurement within each zone. It is the standard for topographic mapping in most NATO countries and for many GIS applications. However, UTM is not suitable for global maps—it breaks the world into 60 zones.

Web Mercator (often called EPSG:3857) is a variant of the Mercator projection adapted for the web. It was popularized by Google Maps in 2005 and is now used by almost all online mapping platforms (including Bing, OpenStreetMap, and ArcGIS Online). Web Mercator preserves the “square-tile” geometry needed for seamless pan-and-zoom, and it makes local shape and angle reasonably accurate at street level. But because it is conformal, it suffers from extreme area distortion at high latitudes. Banks, urban planners, and environmental scientists often switch to equal-area projections to avoid misinterpretation when analyzing global data such as forest cover or population density. Learn about the Web Mercator projection and its trade-offs.

The lesson from the digital revolution is the same one Ptolemy taught: no projection is perfect, and every cartographer must understand the distortions inherent in their chosen representation. The pioneers of map projections—from Ptolemy to Mercator to Lambert to Tissot—laid the mathematical foundation that allows modern maps to serve navigation, science, and everyday use.
